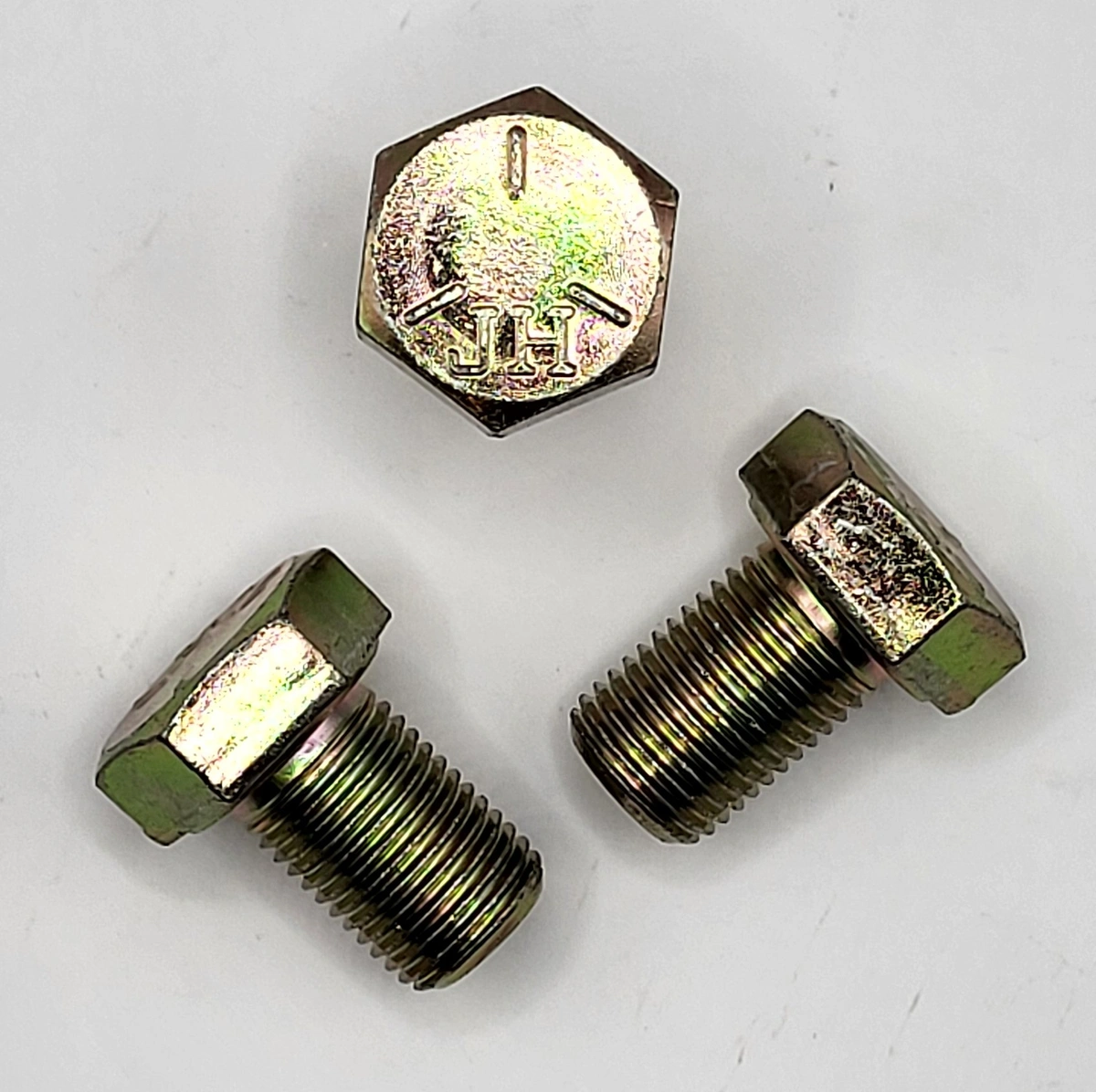

1/2" - 20 X 3/4" HEX HEAD CAP SCREW SAE J429 GR 5 J429 ZINC YELLOW

no image

Part Number:: 1012036
Customer Number:: 1012036
Diameter:: 1/2"
Dimensional Standard(s):: ASME B18.2.1
Finish:: Zinc Yellow
Hardness:: HRC 25-34
Head Style:: Hex
Length:: 3/4"
Material:: Steel
Material Grade:: 5
Material Standard(s):: SAE J429
Measurement System:: Imperial
Thread Class:: UNF-2A
Thread Pitch:: 20
Width Across Flats:: 3/4"
Price:: $0.6000/EA

Quantity:

453 pieces available in stock

Documents

e9413f78-4740-4ad6-b42e-c5f7c59d00b7_1.pdf
