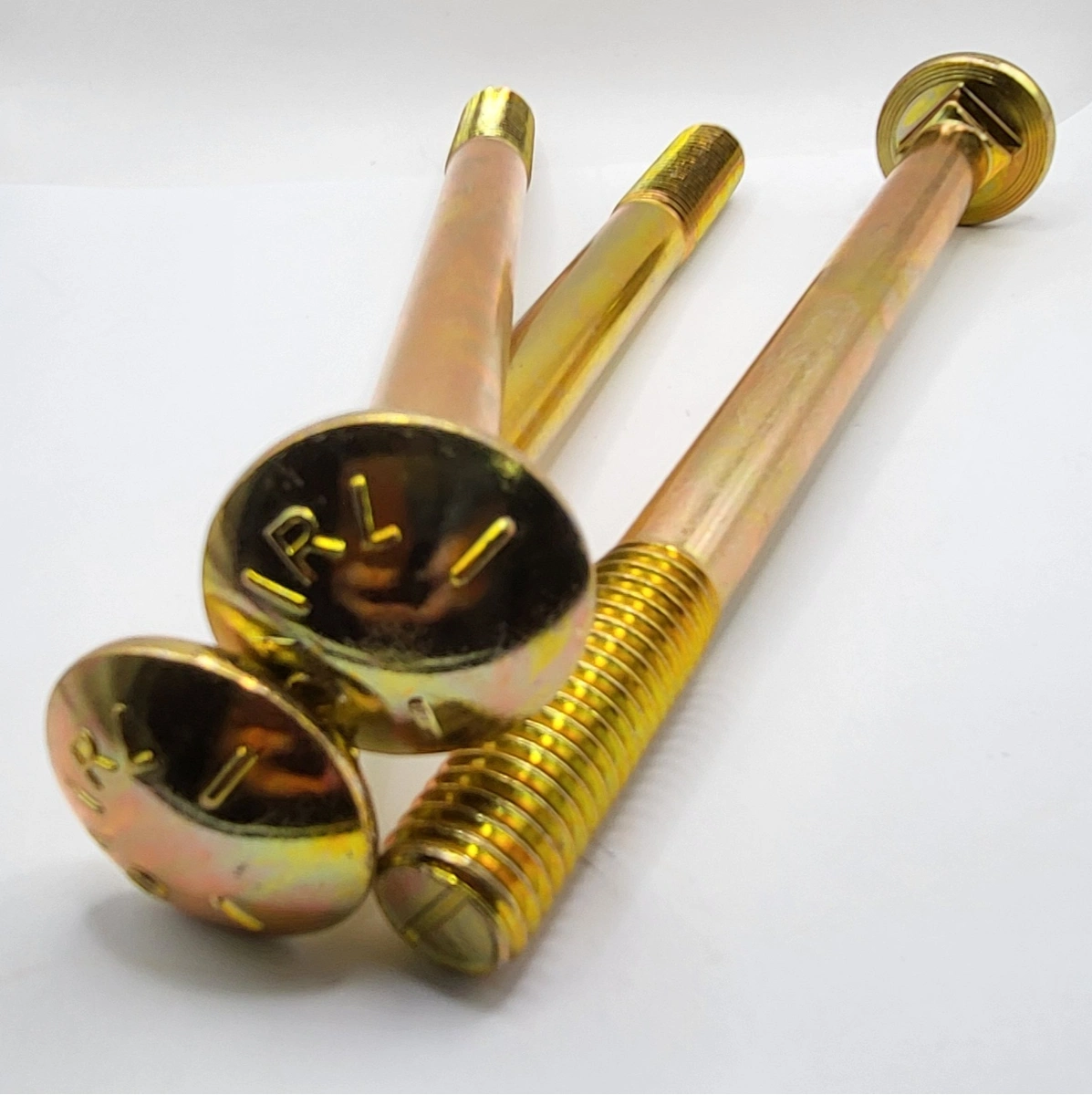

5/8" - 11 X 7 1/2" SQUARE NECK ROUND HEAD BOLT SPECIAL THREAD LENGTH SAE J429 GR 5 ZINC YELLOW PER PRINT

no image

Part Number:: 1217356
Customer Number:: 87465284
Diameter:: 5/8"
Dimensional Standard(s):: Per Print
Drive Type:: Square Neck
Finish:: Zinc Yellow
Hardness:: HRC 25-34
Head Diameter:: 1.344"
Head Height:: 0.344"
Head Style:: Round
Length:: 7 1/2"
Material:: Steel
Material Grade:: 5
Material Standard(s):: SAE J429
Measurement System:: Imperial
Square Neck Across Flats:: 0.642"
Square Neck Height:: 0.344"
Thread Class:: UNC-2A
Thread Pitch:: 11
Price:: $1.9900/EA

Quantity:

630 pieces available in stock

Documents

f476ad54-4ce1-4003-a2eb-a2db4c819ec4_1.pdf
