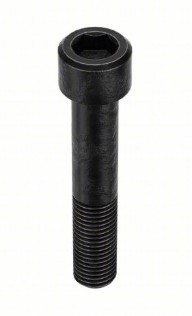

M20 - 2.5 X 110MM DIN 912 SOCKET HEAD CAP SCREW 12.9 BLACK OXIDE

Part Number:: 1425681
Customer Number:: 861-20110, 532310
Measurement System:: Metric
Diameter:: M20
Dimensional Standard(s):: DIN 912
Drive Size:: 17mm
Drive Type:: Hex
Finish:: BLACK OXIDE
Hardness:: HRC 39-44
Head Diameter:: 29.53mm - 30.33mm
Head Height:: 19.48mm - 20mm
Head Style:: Socket Head Cap
Length:: 110mm
Material:: Alloy Steel
Material Grade:: 12.9
Material Standard(s):: ISO 898/1
Thread Class:: 5g6g
Thread Pitch:: 2.5
Price:: $5.11/EA

Out of Stock - Contact sales@zmgroupllc.com

Call to order
