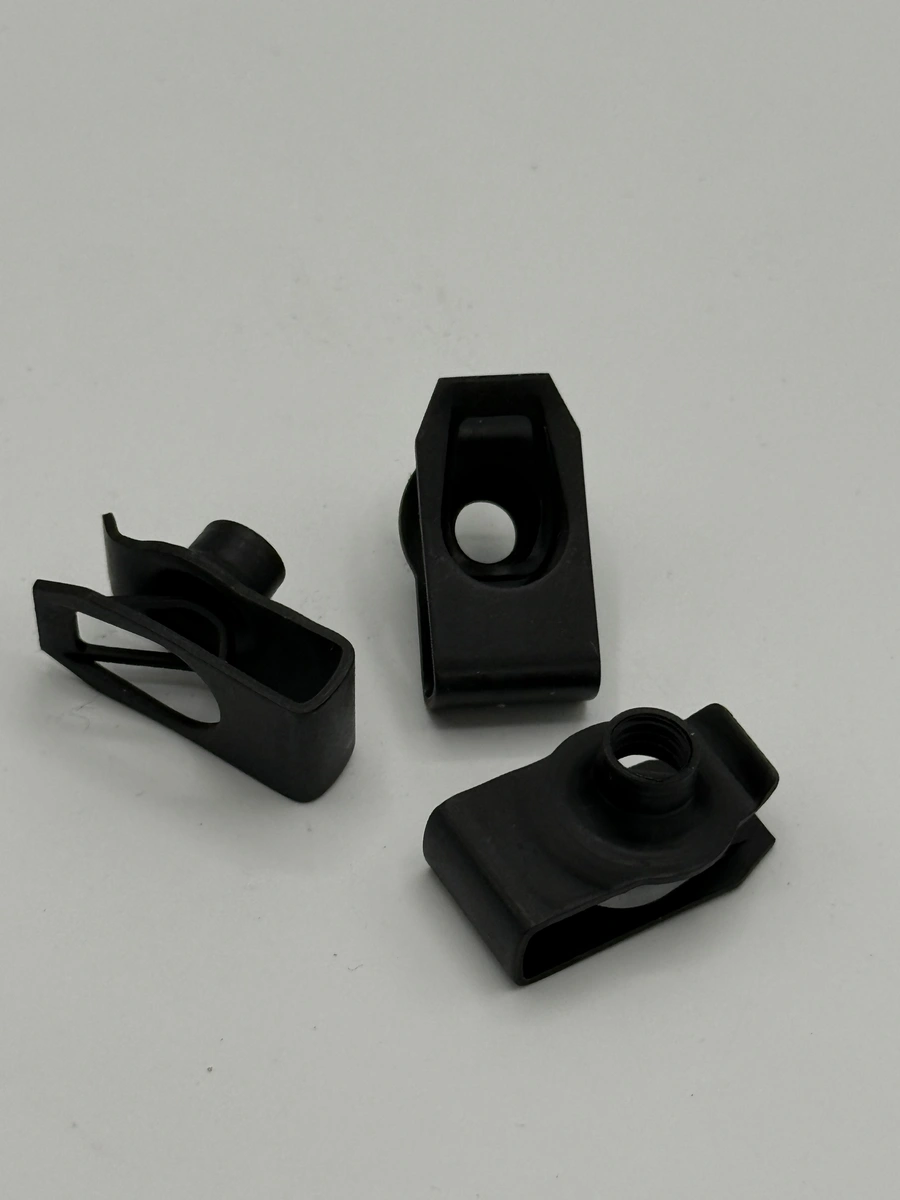

M8 - 1.25 LONG THROAT MULTIPLE THREAD SPRING NUT U TYPE 1050 - 1065 STEEL ZINC PHOSPHATE PER PRINT

Part Number:: 1833103
Customer Number:: 87016586
Measurement System:: Metric
Barrel Height:: 7.5mm - 9mm
Diameter:: M8
Dimensional Standard(s):: Per Print
Finish:: Zinc Phosphate
Hardness:: HRC 45-50
Hole Diameter:: 9.3mm - 9.4mm
Leg Length:: 31mm - 32mm
Material:: Steel
Panel Thickness:: 0.8mm - 4mm
Thickness:: 1mm - 1.1mm
Thread Class:: 6H
Thread Count:: Multiple
Thread Pitch:: 1.25
Throat Depth:: 20.5mm - 21.5mm
Width:: 16.5mm - 17.5mm
Price:: $0.29/EA

Quantity:

12000 pieces in stock
