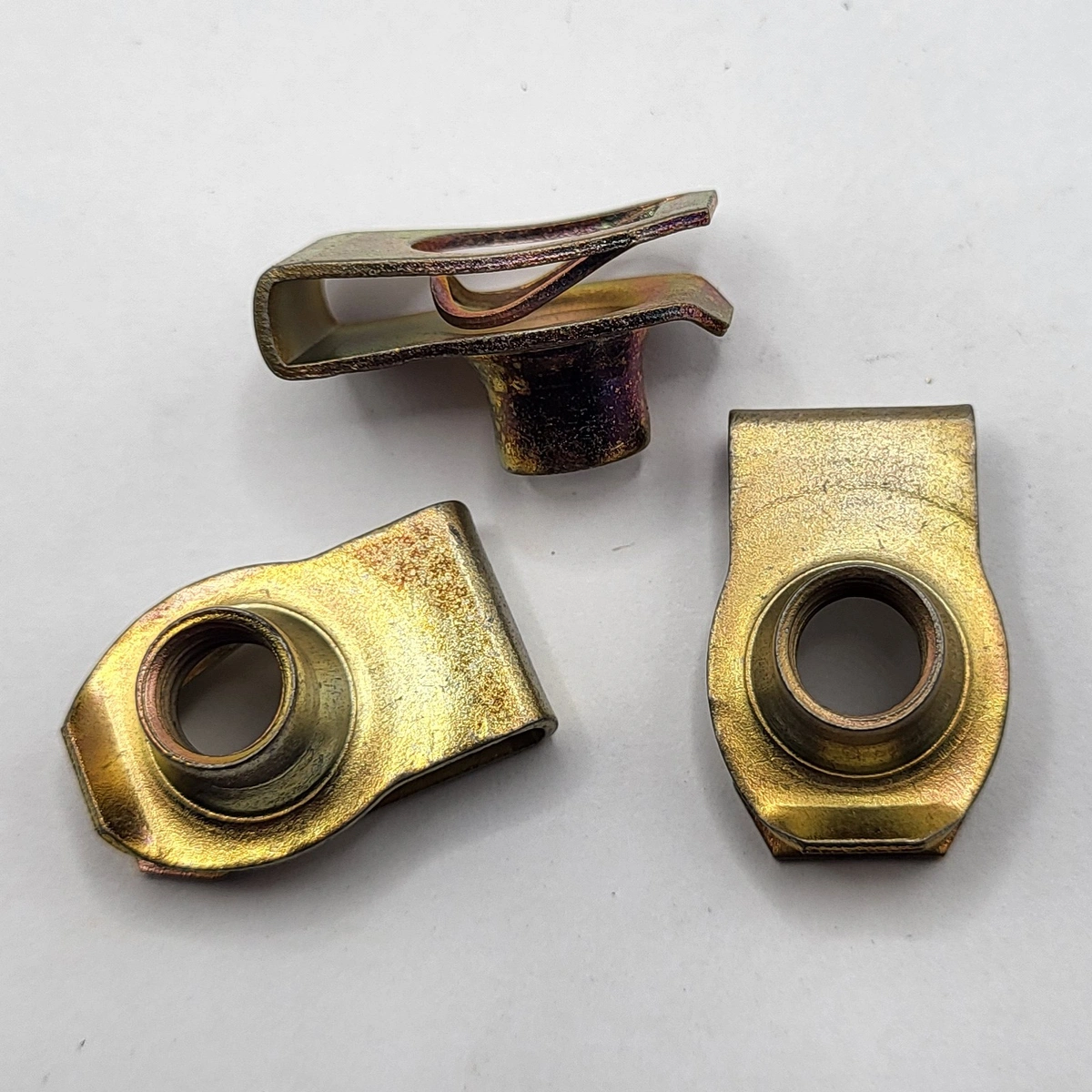

M8 - 1.25 SHORT THROAT MULTIPLE THREAD SPRING NUT U TYPE 1050 - 1065 STEEL MECHANICAL ZINC YELLOW PER PRINT

Part Number:: 1833105
Customer Number:: 86625074, 833-40408
Measurement System:: Metric
Barrel Height:: 7.5mm - 9mm
Diameter:: M8
Dimensional Standard(s):: Per Print
Finish:: Mechanical Zinc Yellow
Hardness:: HRC 45-50
Hole Diameter:: 9.3mm - 9.4mm
Leg Length:: 24.5mm - 25.5mm
Material:: Steel
Panel Thickness:: 0.8mm - 4mm
Thickness:: 1mm - 1.1mm
Thread Class:: 6H
Thread Count:: Multiple
Thread Pitch:: 1.25
Throat Depth:: 14mm - 15mm
Width:: 16.5mm - 17.5mm
Price:: $0.27/EA

Quantity:

4500 pieces in stock
