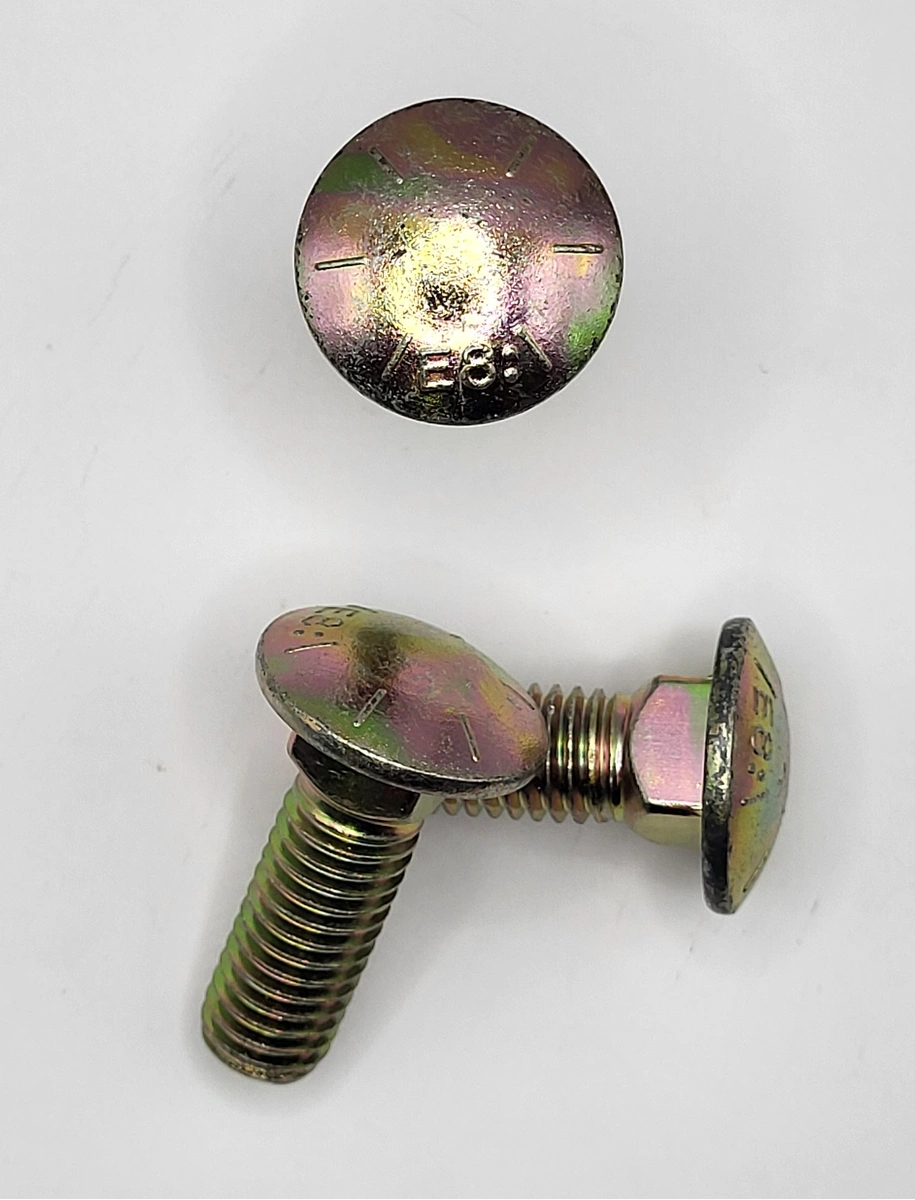

1/2" - 13 X 1 1/2" SQUARE NECK ROUND HEAD BOLT SAE J429 GR 8 ZINC YELLOW

no image

Part Number:: 1969490
Customer Number:: 57167-60, 1969490
Diameter:: 1/2"
Dimensional Standard(s):: ASME B18.5
Finish:: Zinc Yellow
Hardness:: HRC 33-39
Head Diameter:: 1.094"
Head Height:: 0.27"
Head Style:: Round
Length:: 1 1/2"
Material:: Steel
Material Grade:: 8
Material Standard(s):: SAE J429
Measurement System:: Imperial
Square Neck Across Flats:: 0.515"
Square Neck Height:: 0.281"
Thread Class:: UNC-2A
Thread Pitch:: 13
Price:: $2.7900/EA

Quantity:

112 pieces available in stock

Documents

22098fc4-0769-49af-9b63-1010fb5f939b_1.pdf
