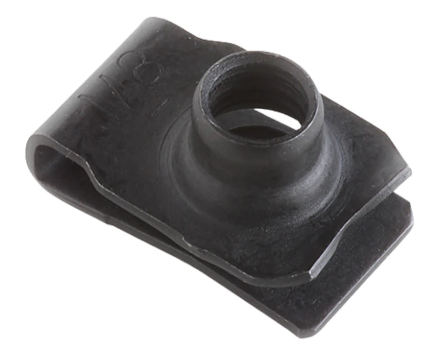

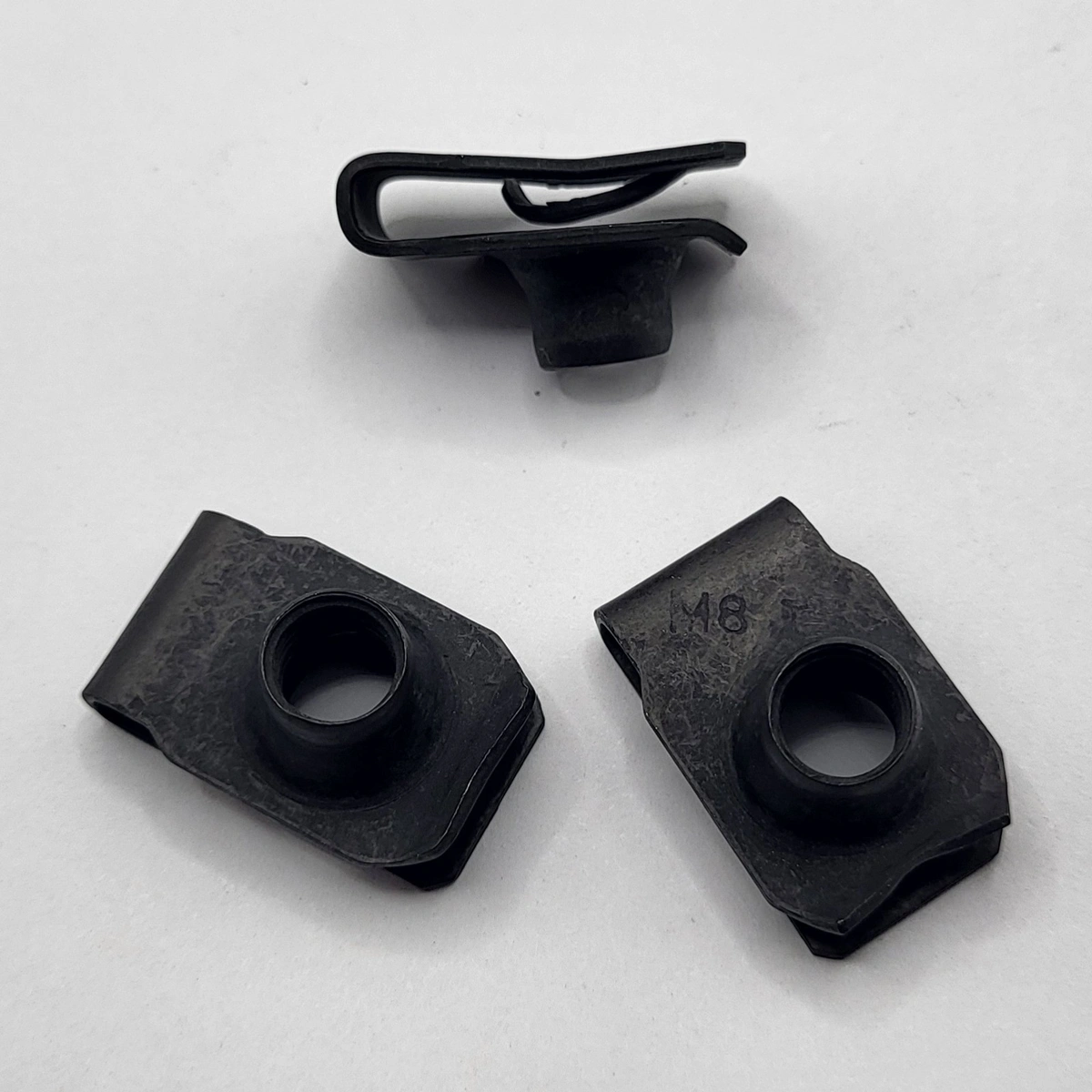

M8 - 1.25 SHORT THROAT MULTIPLE THREAD SPRING NUT U TYPE 1050 - 1065 STEEL ZINC PHOSPHATE PER PRINT

Part Number:: 2001085
Customer Number:: EFUN-LUGS080025-4/B
Measurement System:: Metric
Barrel Height:: 7.5mm - 9mm
Diameter:: M8
Dimensional Standard(s):: Per Print
Finish:: Zinc Phosphate
Hardness:: HRC 45-50
Hole Diameter:: 9.3mm - 9.4mm
Leg Length:: 24.5mm - 25.5mm
Material:: 1050 - 1065 Steel
Panel Thickness:: 0.8mm - 4mm
Thickness:: 1mm - 1.1mm
Thread Class:: 6H
Thread Count:: Multiple
Thread Pitch:: 1.25
Throat Depth:: 14mm - 15mm
Width:: 16.5mm - 17.5mm
Price:: $0.35/EA

Quantity:

600 pieces in stock
