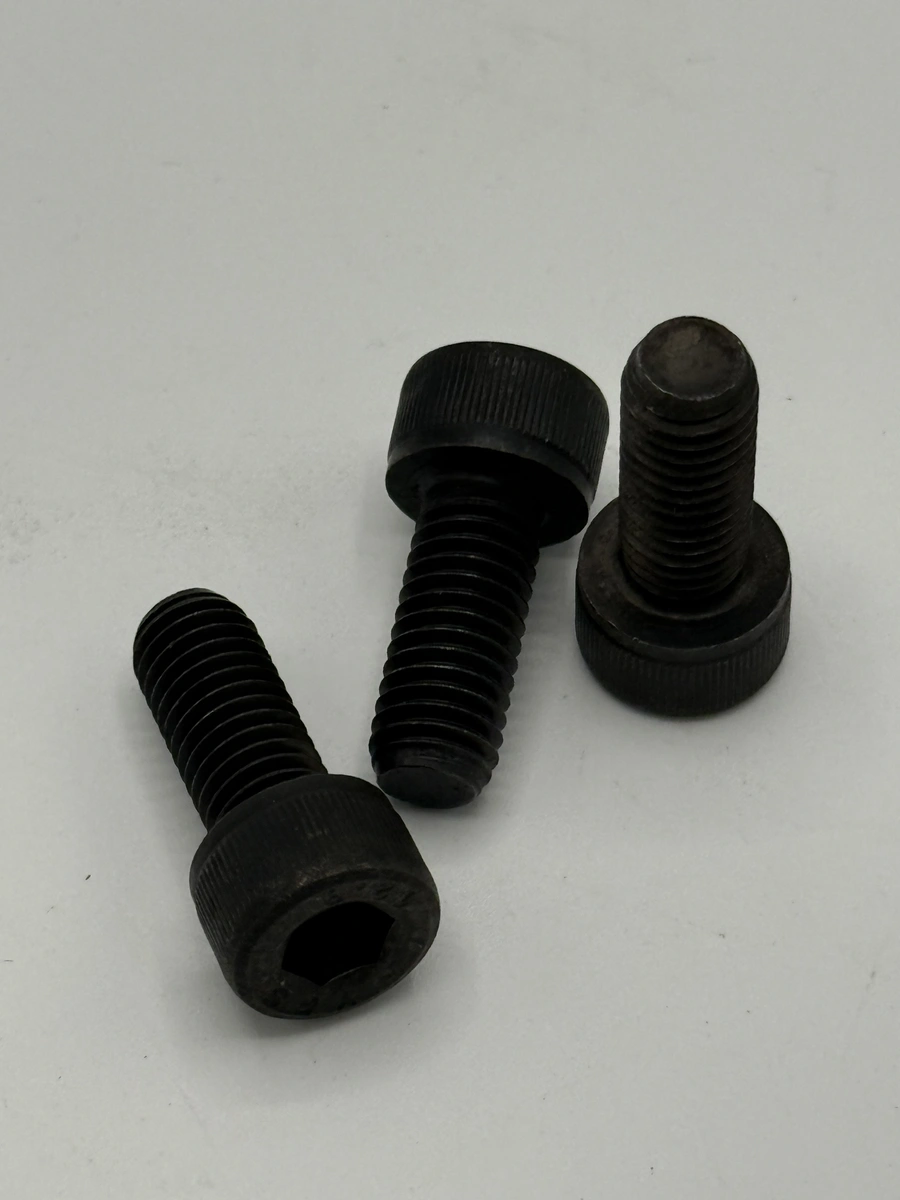

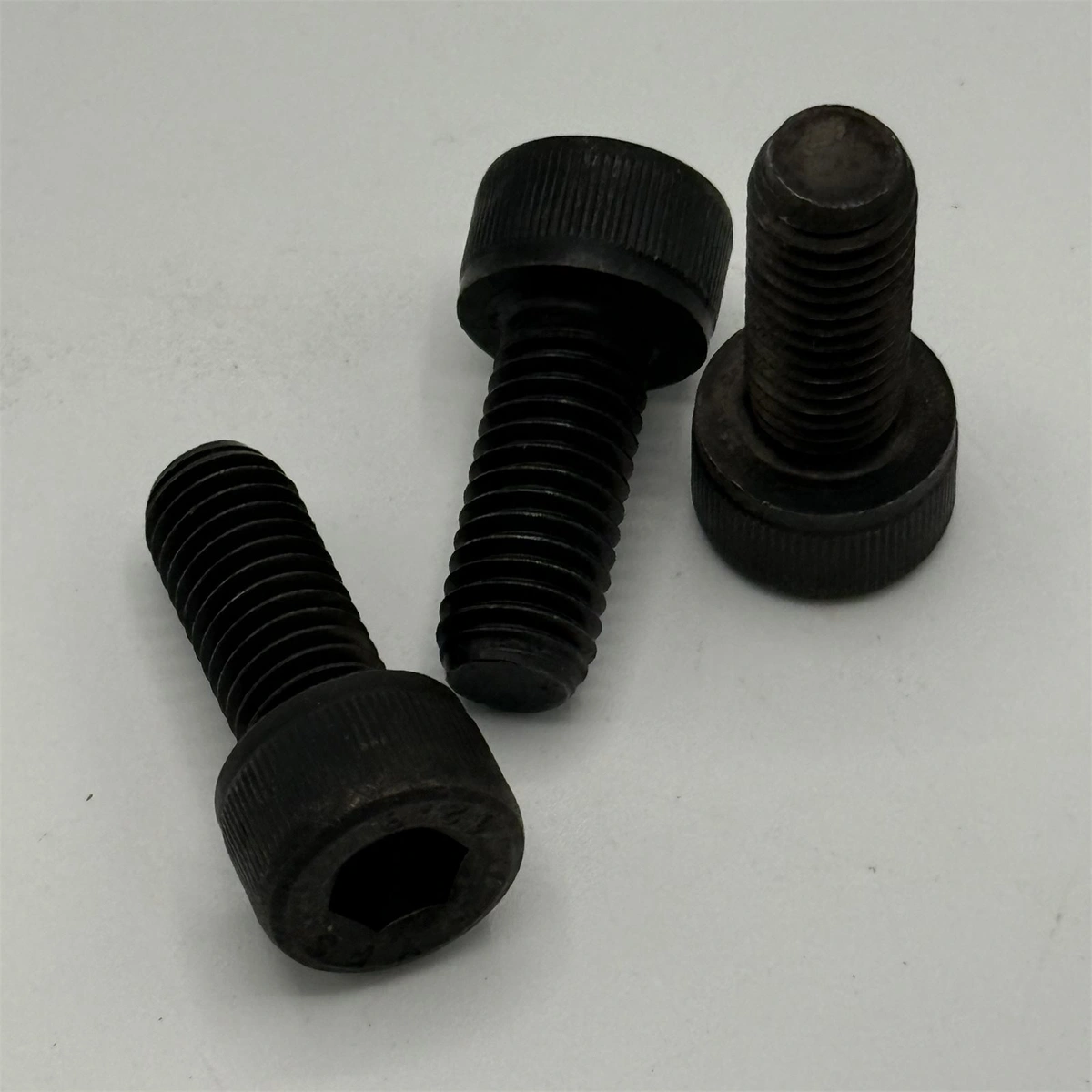

M10 - 1.5 X 20MM DIN 912 SOCKET HEAD CAP SCREW 12.9 BLACK OXIDE

Part Number:: 2004909
Customer Number:: 86528768, 532148
Measurement System:: Metric
Diameter:: M10
Dimensional Standard(s):: DIN 912
Drive Size:: 8mm
Drive Type:: Hex
Finish:: BLACK OXIDE
Hardness:: HRC 39-44
Head Diameter:: 15.67mm - 16.27mm
Head Height:: 9.64mm - 10mm
Head Style:: Socket Head Cap
Length:: 20mm
Material:: Alloy Steel
Material Grade:: 12.9
Material Standard(s):: ISO 898/1
Thread Class:: 6g
Thread Pitch:: 1.5
Price:: $0.21/EA

Out of Stock - Contact sales@zmgroupllc.com

Call to order
