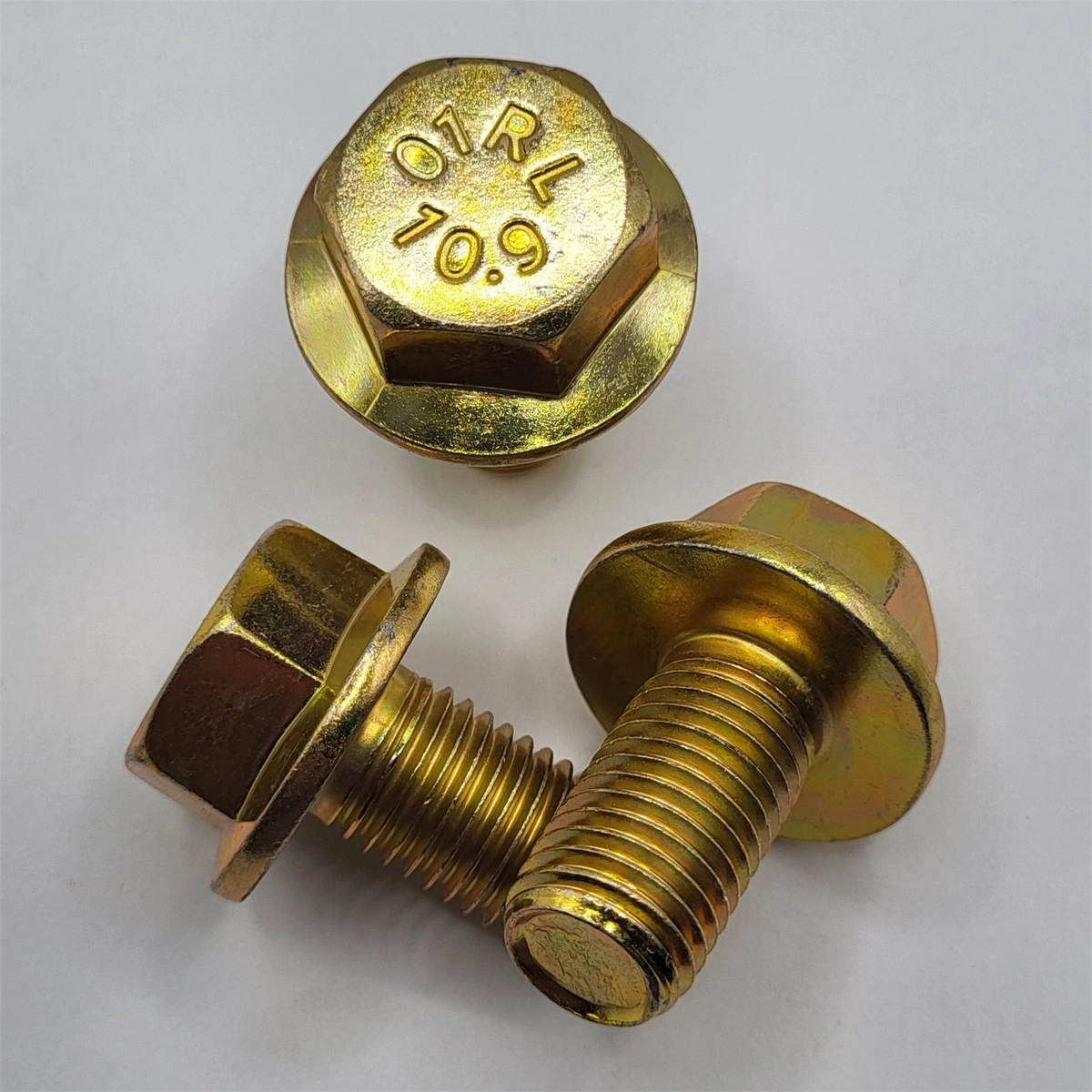

M10 - 1.5 X 25MM EN 1665 HEAVY HEX FLANGE SCREW 10.9 ZINC YELLOW

no image

Part Number:: 2007078
Customer Number:: 633095, 69451-60
Diameter:: M10
Dimensional Standard(s):: EN 1665
Finish:: Zinc Yellow
Hardness:: HRC 33-39
Head Height:: 10.4mm
Head Style:: Hex Flange
Length:: 25mm
Material:: Steel
Material Grade:: 10.9
Material Standard(s):: ISO 898/1
Measurement System:: Metric
Thread Class:: 6g
Thread Pitch:: 1.5
Width Across Flats:: 16mm
Price:: $0.2899/EA

Quantity:

Out of Stock

Documents

a2b1dfea-7cc6-466b-b04f-19d78d61782f_1.pdf
