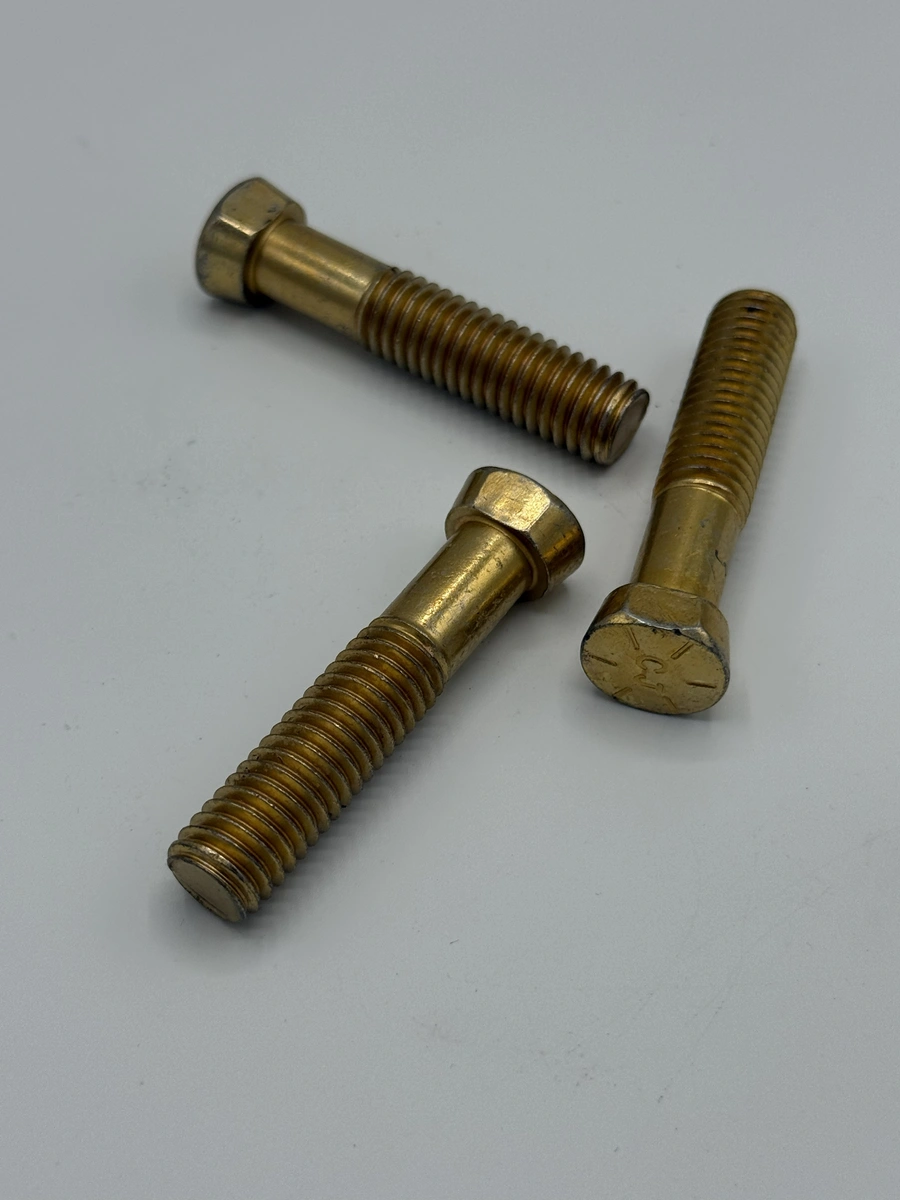

7/16" - 14 X 2.244" CLIPPED HEAD PLOW BOLT SAE J429 GR 8 ZINC YELLOW PER PRINT

no image

Part Number:: 2007548
Customer Number:: 59056C3
Diameter:: 7/16"
Dimensional Standard(s):: Per Print
Finish:: Zinc Yellow
Hardness:: HRC 33-39
Head Diameter:: 0.616"
Head Height:: 0.276"
Head Style:: Clipped
Length:: 2.244"
Material:: Steel
Material Grade:: 8
Material Standard(s):: SAE J429
Measurement System:: Imperial
Thread Class:: UNC-2A
Thread Pitch:: 14
Width Across Flats:: 0.535"
Price:: $0.4486/EA

Quantity:

11997 pieces available in stock

Documents

b36b3861-3ce0-4d88-938d-33fed8abad94_1.pdf
