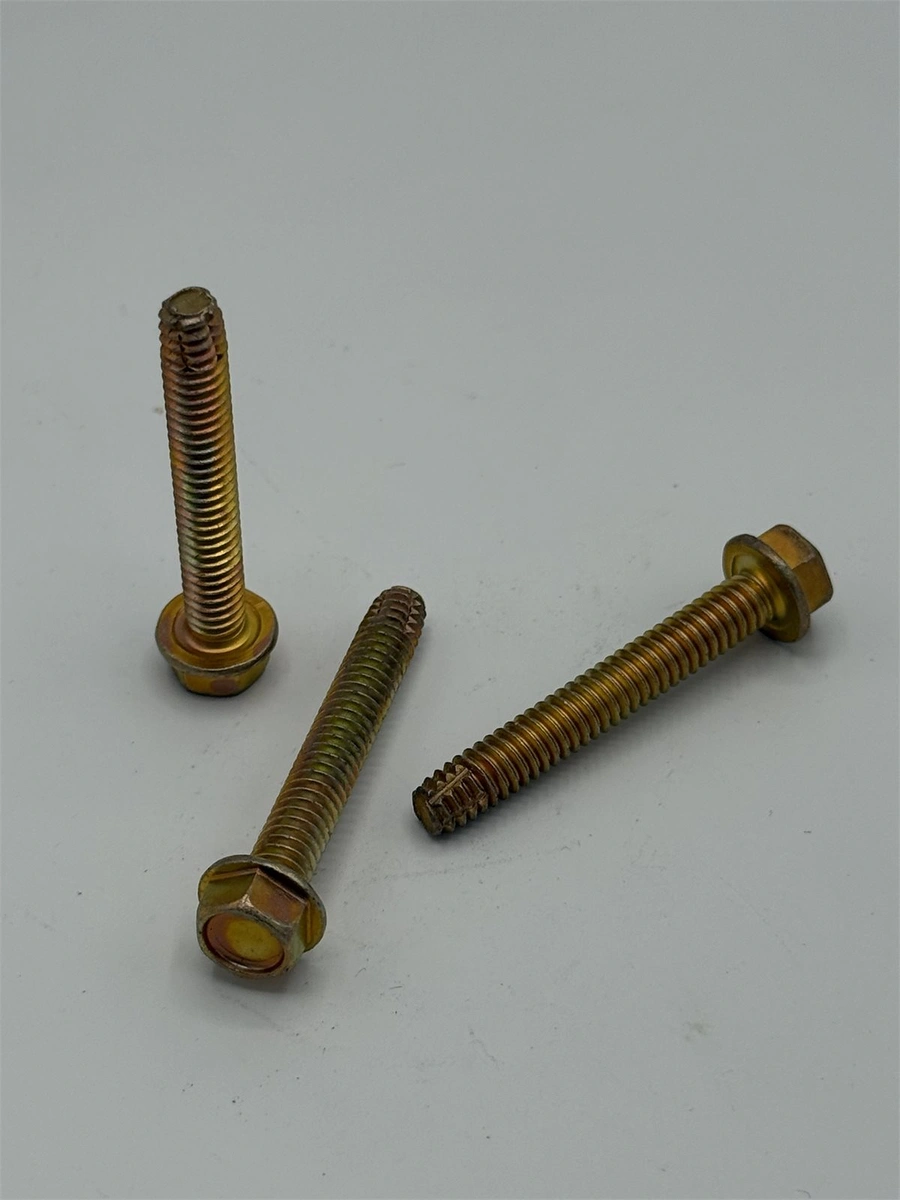

1/4" - 20 X 1 3/4" HEX WASHER HEAD THREAD CUTTING SCREW TYPE F STEEL CASE HARDENED ZINC YELLOW

Part Number:: 2009433
Customer Number:: 2009433
Measurement System:: Imperial
Diameter:: 1/4"
Dimensional Standard(s):: ASME B18.6.3
Drive Type:: Hex
Finish:: Zinc Yellow
Hardness:: HRC 45 Min
Head Height:: 0.172" - 0.190"
Head Style:: Hex Washer
Length:: 1 3/4"
Material:: Steel Case Hardened
Thread Pitch:: 20
Washer Thickness:: 0.030" - 0.050"
Width Across Flats:: 0.367" - 0.375"
Price:: $0.83/EA

Quantity:

786 pieces in stock
