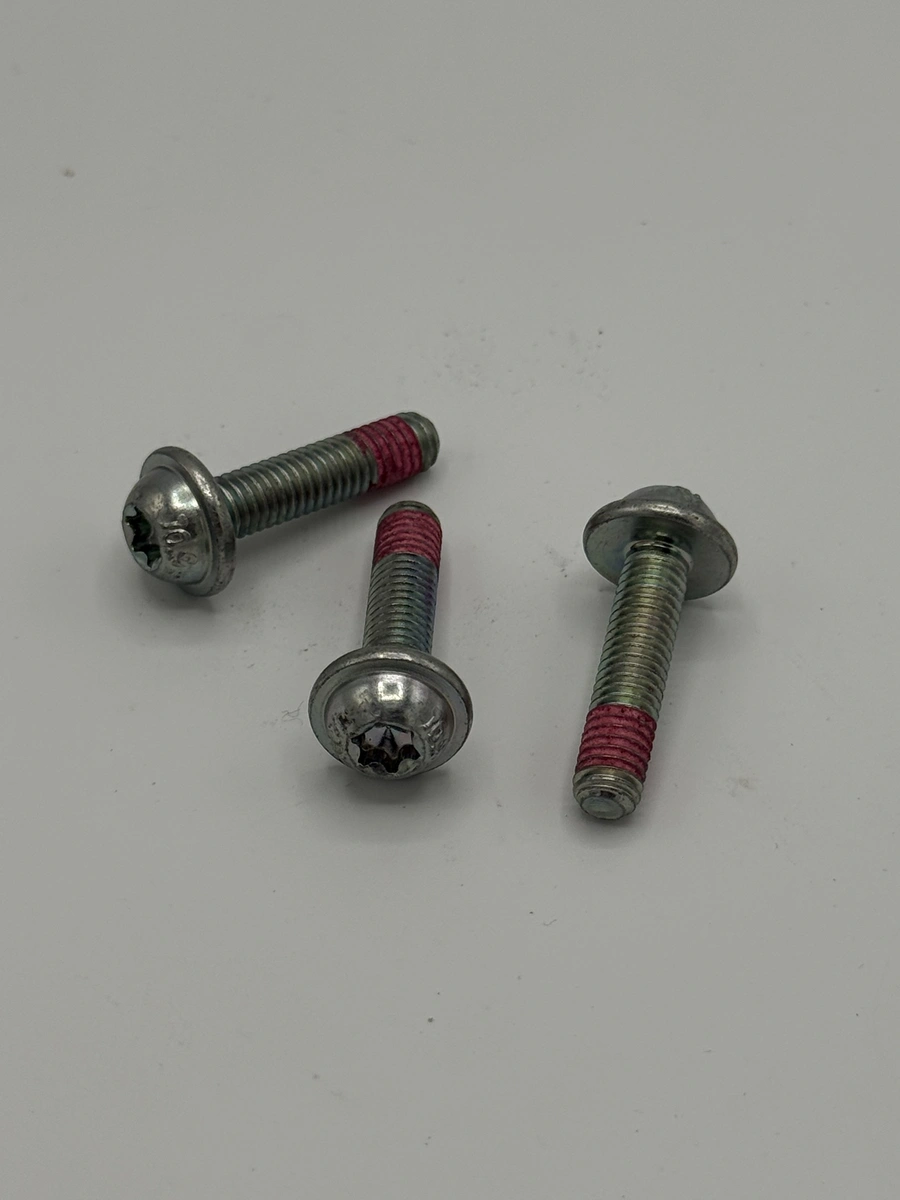

M6 - 1 X 25MM 6 LOBE ROUND WASHER HEAD MACHINE SCREW PRECOTE 80 PATCH 10.9 ZINC TRIVALENT CLEAR PER PRINT

Part Number:: 2018610
Customer Number:: 84375323
Measurement System:: Metric
Diameter:: M6
Dimensional Standard(s):: Per Print
Drive Size:: T30
Drive Type:: 6 Lobe
Finish:: Zinc Trivalent Clear W/ Precote 80 Patch
Hardness:: HRC 32-39
Head Diameter:: 10.89mm
Head Height:: 5.67mm
Head Style:: Round Washer
Length:: 25mm
Material:: Steel
Material Grade:: 10.9
Material Standard(s):: ISO 898/1
Thread Class:: 6g
Thread Pitch:: 1
Washer Diameter:: 13.2mm
Washer Thickness:: 1.3mm
Price:: $0.22/EA

Quantity:

7497 pieces in stock

Documents
