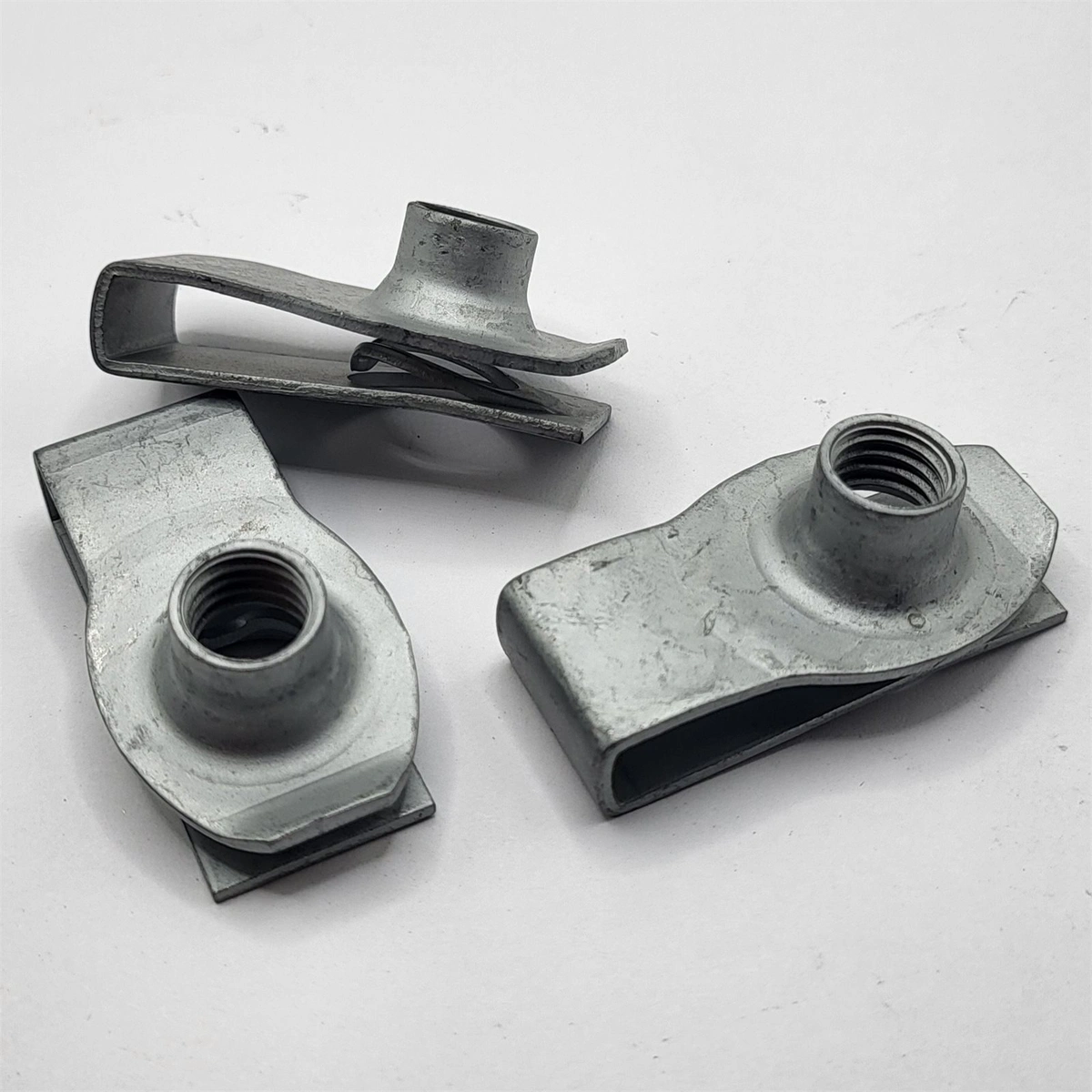

M10 - 1.5 LONG THROAT MULTIPLE THREAD SPRING NUT U TYPE SPRING STEEL MECHANICAL ZINC YELLOW PER PRINT

Part Number:: 2027111
Customer Number:: 84522379
Measurement System:: Metric
Barrel Height:: 9mm - 10.5mm
Diameter:: M10
Dimensional Standard(s):: Per Print
Finish:: Mechanical Zinc Yellow
Hardness:: HRC 45-50
Hole Diameter:: 11.6mm - 11.7mm
Leg Length:: 42mm - 43mm
Material:: Steel
Panel Thickness:: 1.5mm - 5.5mm
Thickness:: 1.35mm - 1.45mm
Thread Class:: 6H
Thread Count:: Multiple
Thread Pitch:: 1.5
Throat Depth:: 28mm - 29mm
Width:: 23mm - 25mm
Price:: $0.89/EA

Quantity:

1000 pieces in stock
