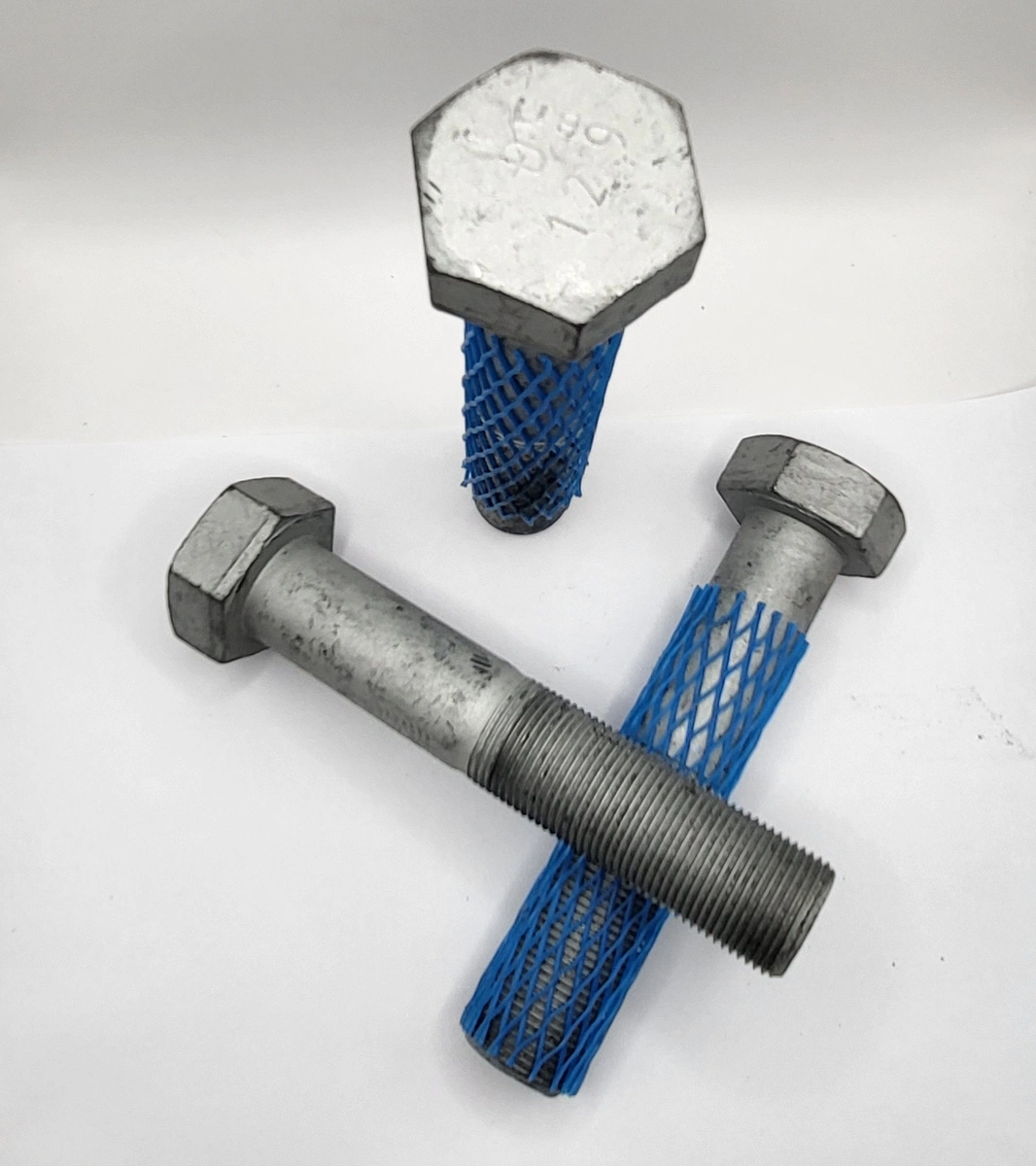

M22 - 1.5 X 100MM ISO 8765 PT HEX HEAD CAP SCREW W/ THREAD PROTECTION 12.9 MAGNI 565 GREY

Part Number:: 2036252
Customer Number:: 51461425, 51461425, BD8450
Measurement System:: Metric
Diameter:: M22
Dimensional Standard(s):: ISO 8765
Finish:: Magni 565 Grey
Hardness:: HRC 39-44
Head Style:: Hex
Length:: 100mm
Material:: Steel
Material Grade:: 12.9
Material Standard(s):: ISO 898/1
Thread Class:: 6g
Thread Pitch:: 1.5
Width Across Flats:: 34mm
Price:: $5.89/EA

Out of Stock - Contact sales@zmgroupllc.com

Call to order

Documents

a608bee8-0861-4507-932f-d2af901bee84_1.pdf
