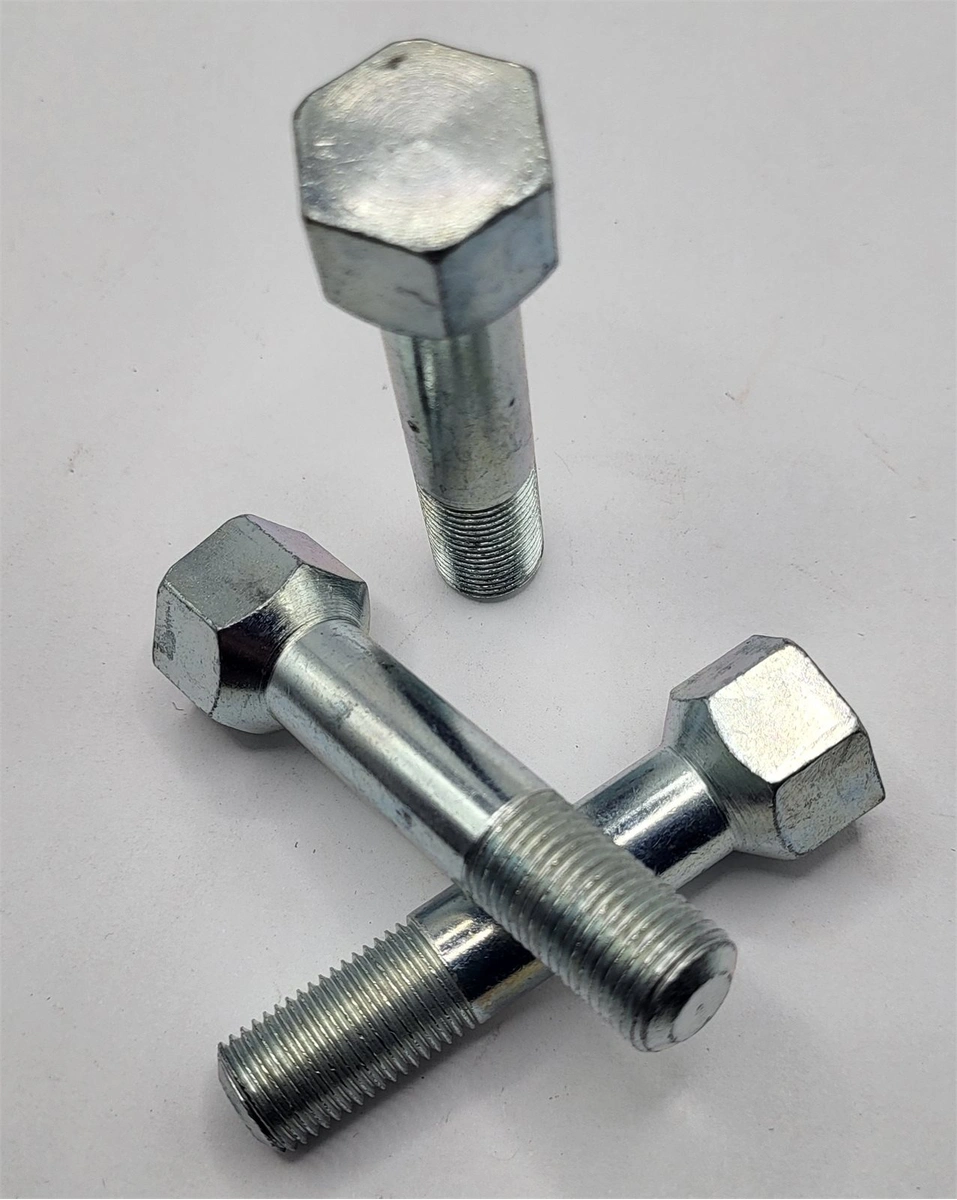

1/2" - 20 X 2 23/32" HEX HEAD WHEEL BOLT 90 DEGREE FACE SAE J429 GR 5 ZINC TRIVALENT CLEAR PER PRINT

Part Number:: 2036706
Customer Number:: 283107, 283107
Measurement System:: Imperial
Diameter:: 1/2"
Dimensional Standard(s):: Per Print
Finish:: Zinc Trivalent Clear
Hardness:: HRC 25-34
Head Height:: 0.5938"
Head Style:: Hex 90 Degree Face
Length:: 2 23/32"
Material:: Steel
Material Grade:: 5
Material Standard(s):: SAE J429
Thread Class:: UNF-2A
Thread Pitch:: 20
Underhead Angle:: 90
Width Across Flats:: 3/4"
Price:: $2.59/EA

Quantity:

106 pieces in stock
