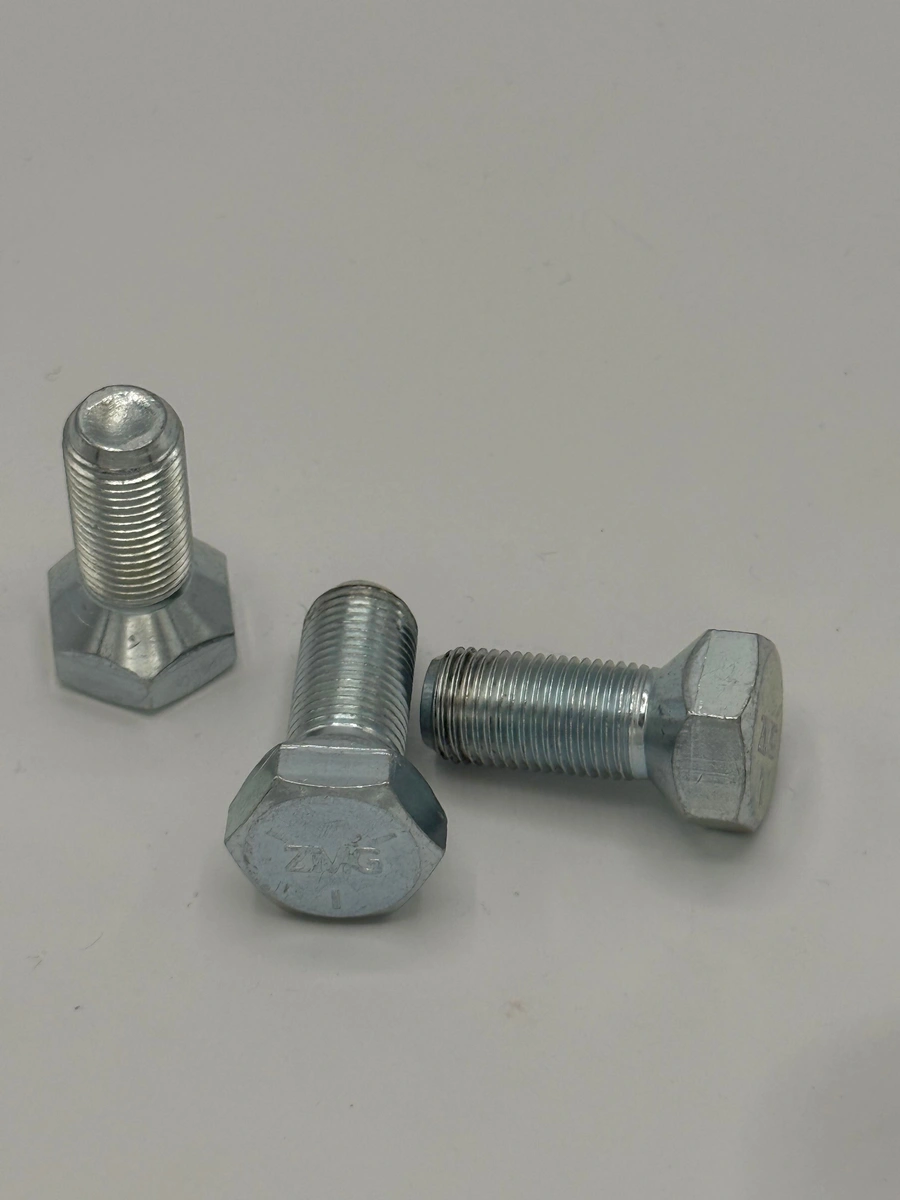

1/2" - 20 X 1" HEX HEAD WHEEL BOLT 90 DEGREE FACE SAE J429 GR 5 10B21 ZINC TRIVALENT CLEAR PER PRINT

no image

Part Number:: 3456698
Customer Number:: 3456698
Diameter:: 1/2"
Dimensional Standard(s):: Per Print
Finish:: Zinc Trivalent Clear
Hardness:: HRC 33-39
Head Height:: 0.3346" - 0.3586"
Head Style:: Hex 90 Degree Face
Length:: 1"
Material:: 10B21 Steel
Material Grade:: 8
Material Standard(s):: SAE J429
Measurement System:: Imperial
Thread Class:: UNF-2A
Thread Pitch:: 20
Underhead Angle:: 90
Width Across Flats:: 0.800" - 0.813"
Price:: $1.4900/EA

Quantity:

Out of Stock

Documents

faa6aa37-09a3-4412-a63d-e8eaddbb0dde_1.pdf
