ZMG Miscellaneous

16MM W X 11MM H X 45MM L CAGE HR LOW CARBON STEEL PLAIN PER PRINT

23MM X 54MM X 17MM HUB A434 CLASS BC ZINC TRIVALENT YELLOW PER PRINT

25/64" X 1 3/4" X 2.9" PIVOT FREE MACHINING STEEL ZINC TRIVALENT CLEAR PER PRINT

3/8" - 16 X 5/8" FLUSH PRESS THREADED INSERT FOR PLASTIC - BRASS

3/8" - 24 X 2 1/2" ADJUSTABLE CLEVIS LIGHT 1010 - 1018 STEEL ZINC YELLOW

36MM W X 19.05MM H X 102MM L DRILLED/TAPPED HOLE(S) BLOCK 4140H STEEL MAGNI 565 GREY PER PRINT

5/8" W X 25/64" H X 7/8" L CABLE TIE MOUNT SCREW APPLIED NYLON BLACK PER PRINT

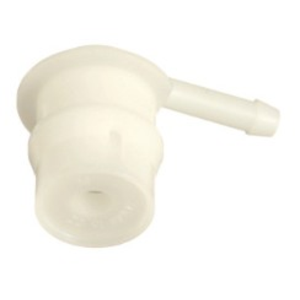

ALFMEIER PRAZISION 007764010 -SOLE- 48133342 VALVE FUEL VENT

AZ LIFTING CQL316 -REF- 1 15/16" L X 1/2" W INSIDE X 3/16" QUICK LINK CARBON STEEL ZINC TRIVALENT CLEAR

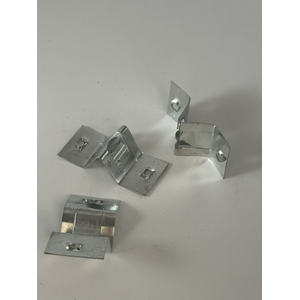

C477-017-3B -REF- 25MM W X 54MM L X 15.25MM H X 0.40" THK LATCH 1050 - 1074 STEEL ZINC CLEAR PER PRINT

IGUS EF0I-10R -SOLE- X 2.86" L X 5/8" SPHERICAL 2 BOLT BEARING EXTENDED INNER RING IGUBAL R

TYTON T50ROW -REF- X 3/16" W X 8" L CABLE TIE NYLON BLACK
