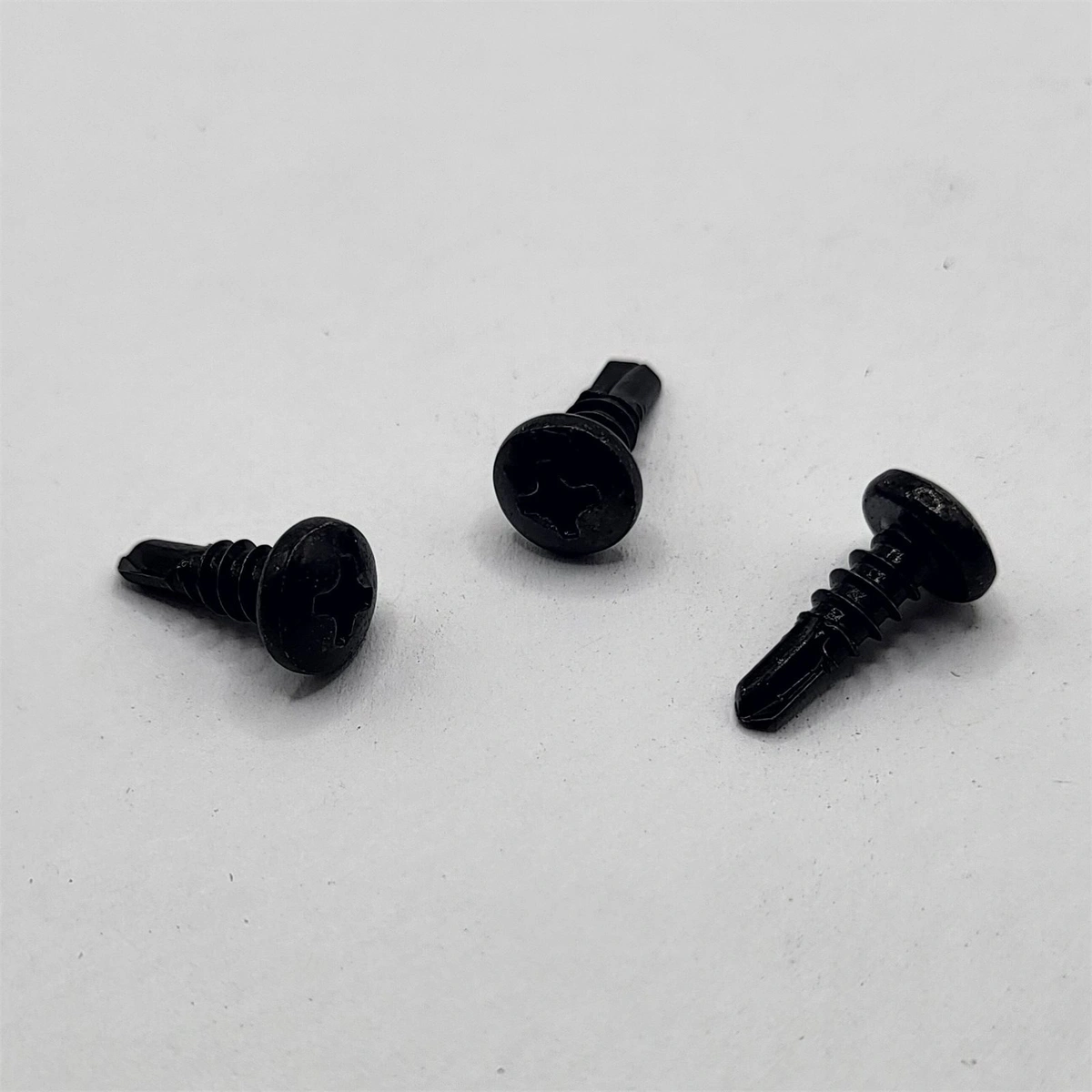

NO. 8" - 18 X 1/2" PHILLIPS PAN HEAD SELF DRILLING SCREW BSD STYLE 2 STEEL CASE HARDENED ZINC TRIVALENT BLACK

Part Number:: ZMG58952
Customer Number:: CTT00025822-02
Measurement System:: Imperial
Diameter:: No. 8"
Dimensional Standard(s):: ASME B18.6.3
Drive Size:: 2
Drive Type:: Phillips
Finish:: Zinc Trivalent Black
Hardness:: HRC 50-56
Head Diameter:: 0.306" - 0.322"
Head Height:: 0.105" - 0.115"
Head Style:: Pan
Length:: 1/2"
Material:: Steel Case Hardened
Material Standard(s):: SAE J78
Thread Pitch:: 18
Price:: $0.40/EA
