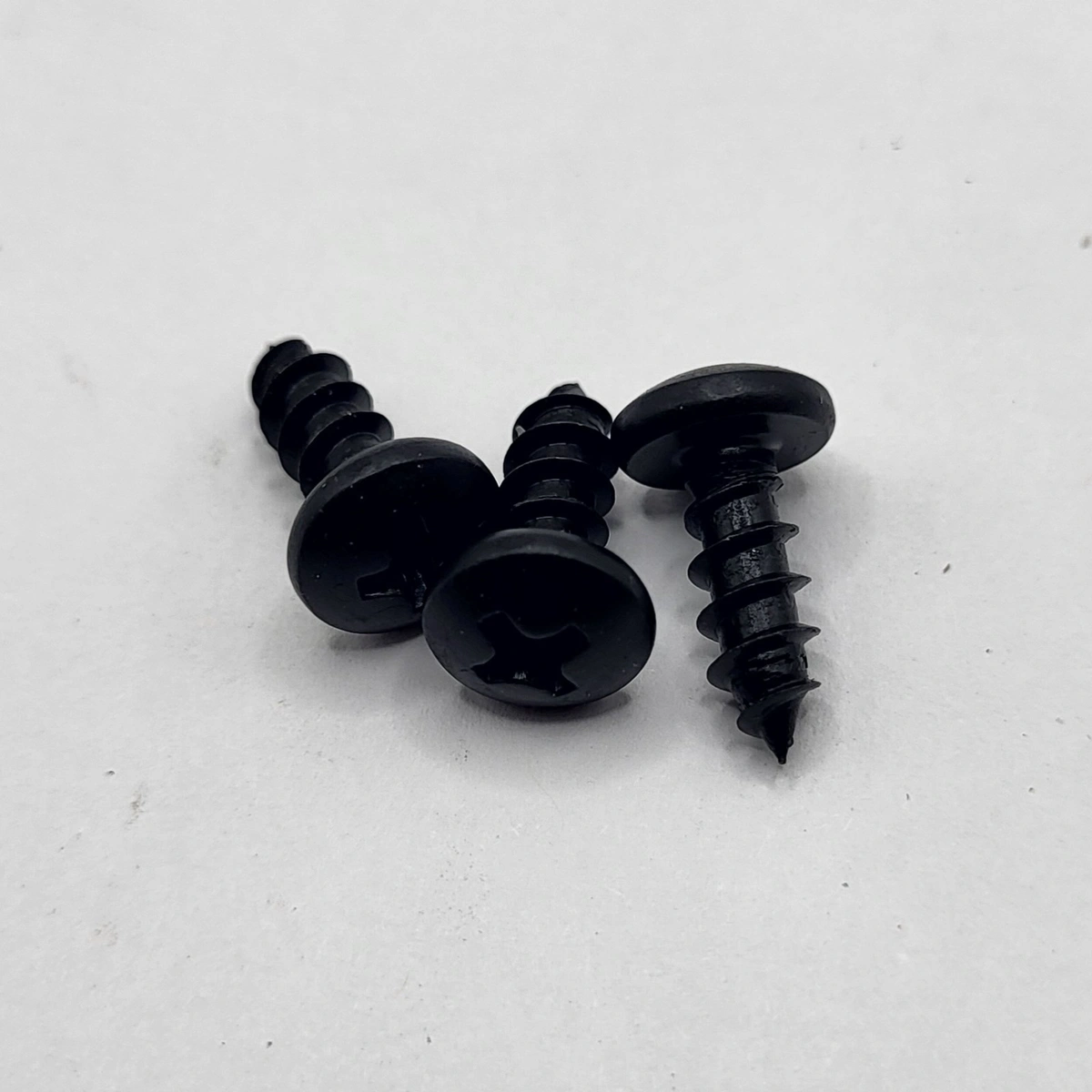

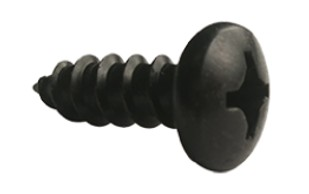

NO. 10" - 12 X 1/2" PHILLIPS PAN HEAD THREAD FORMING SCREW TYPE A STEEL CASE HARDENED BLACK OXIDE

Part Number:: ZMG59072
Customer Number:: 10-32 x 1/2 PHILLIPS, 1008APPB
Measurement System:: Imperial
Diameter:: No. 10"
Dimensional Standard(s):: ASME B18.6.3
Drive Size:: 2
Drive Type:: Phillips
Finish:: BLACK OXIDE
Hardness:: HRC 45 Min
Head Diameter:: 0.357" - 0.373"
Head Height:: 0.122" - 0.133"
Head Style:: Pan
Length:: 1/2"
Material:: Steel Case Hardened
Material Standard(s):: SAE J933
Thread Pitch:: 12
Price:: $0.05/EA

Out of Stock - Contact sales@zmgroupllc.com

Call to order
